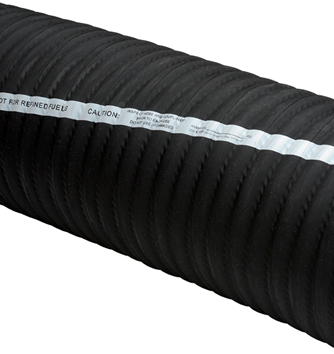

A versatile suction and discharge hose designed to handle brine, crude oil, drilling mud, mild chemicals, petroleum waste, sediments, sludge, slurries and water in oil field applications such as frac tank service. The corrugated hose construction incorporates a wire helix that provides full suction capability, flexibility, kink resistance, and a path to conduct a static electrical charge to ground. The nitrile/SBR cover is resistant to abrasion, oil and weathering.

With the addition of new crimping equipment, Hoseinc now has the ability to crimp industrial and oilfield hoses up to 10 inch in diameter as seen in the picture to the left. We feel that using these crimp sleeves provides superior gripping ability over the banding material commonly found on frac tank manifold hoses, which in turn helps to prevent fitting blow outs and expensive downtime and cleanup.

TUBE:
Black, specially compounded elastomer; low oil swell

REINFORCEMENT:
High tensile tire cord plies; helix wire

COVER:
Black, SBR/Nitrile blend compounded for oil and ozone resistance (corrugated)

TEMPERATURE:
-40°F to +190°F

BRANDING:
PREMIUM FRAC TANK HOSE 150PSI WP NOT FOR REFINED FUELS
