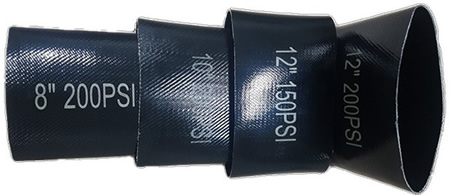

14 inch TPU hose

Structure of TPU Layflat Hose:
Inner/Outer layer: High strength thermoplastic polyurethane (TPU),  Extruded By Extruder Simultaneously.
Reinforcement: High strength circular woven polyester or polyamide.

Applications of TPU Layflat Hose:

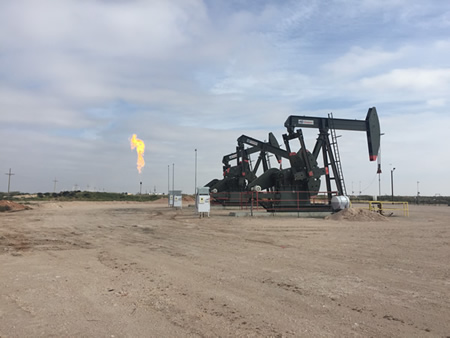

For transfer of chemicals, oil & fuel, abrasive substances, potable water, or transfer over highly abrasive ground. Mostly used for  oilfield fracking project water transfer, irrigation, municitple city water and mining water transfer etc.

Advantages of TPU Layflat Hose:
1. Extra abrasion resistance for rugged terrain and extreme conditions.
2. Resistant to oil and chemicals.
3. Heavy duty, high pressure lay flat hose.
4. UV Stabilised.
5. Manufactured by an ISO 9002 Approved Company.


Technical   Specification

Size Wall Thickness Working Pressure Bursting Pressure Weight approx. Length
inch mm psi psi lbs/ft meter
14" 0.215 5.5 ≥150 ≥450 4.37 200



Temperature:

Flexible in all weather conditions from -50 deg C to 80 deg C.


Services of TPU Layflat Hose:
1. Standard colour black,other colours on request.
2. Individual marking available.
3. Binding with international couplings available on request.
4. Other diameters on request.
5. Standard lengths 100 m and 200 m.
