TPU Hose purpose-builds the products that are tough enough to meet the rigorous demands of the oil and gas industry—from fracking operations to dewatering applications. Our hoses are light in weight for quick and easy transport, yet are engineered with extra-sturdy abrasion-resistant hose walls that kink less and provide smooth, unrestricted flow for exceptional performance in the field.

Constructed with high tenacity fibers and an extremely abrasion resistant thermoplastic polyurethane (TPU).  Polyurethane is excellent for wear and tear resistance, the reinforcement is made from circular woven filament polyester yarn.  In recent years, TPU hose is widely used in oilfield fracking project, it has been demonstrated worth of the price compared to the life of nitrile rubber/PVC hose for water transfer in the oil patch.

TPU Advantage vs Nitrile Ruber

The "extrusion through-the-weave" production method gives it a very excellent bonding between the layers as well as firmly encapsulating the woven polyester, this hose can perform well at temperature range from -50 C deg to 80 C deg (-58 F deg to +176 F deg).

More efficent and easy to operate High Pressure rating Good resistance to chemicals UV Stabilised hard wearing Customized color and logo, markings.

Application

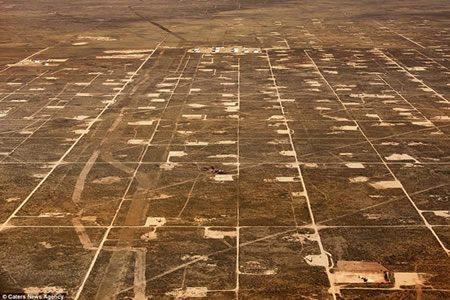

Oilfield plot  fracking, construction sites, waste water industry, agriculture and mining, transport of abrasive materials, flexible pipeline even in extreme terrain, irrigation and sludge disposal, for heavy duty service under toughest conditions. Perfectly prepared for hydraulic fraction in shales and oil fields.

Characteristics

Material: TPU, Ribbed cover or smooth cover Reinforcement Jacket,(High-tenacity synthetic jacket).
Pressure: Working pressure 200PSI, burst 600PSI. Size: Most popular 8", 10", 12"
lenghth: 660ft (200 meter).
Color: Normally black, could be customized any color. Package: Alluminium reel.
Temperature:  -50 C deg to 80 C deg (-58 F deg to +176 F deg).
Tube: PU
REINFORCEMENT: Polyester-Nylon textile
Out-layer: PU, Ribbed cover or smooth cover

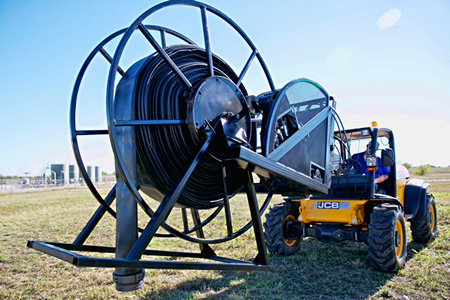

Packing: Rolled, packed on steel reel
Coupling: On request
Length:100 ft (30m), 200 ft (61m), 300 ft (91.5m), 330 ft (100m) 660 ft (200m)
Color: Black (default) or customized

Technical Data

 How it's made

There are two distinctly ways to manufacture TPU lay flat hose. Hose produced more traditional way referred to as 3-ply PU, or laminated PU. Hose produced with more technique referred to as "extruded-through-the-weave".

3-Ply or called  Laminated PU

3-Ply hose is actually comprised of five layers; an inner PU tube, an adhesive tube, a reinforcement jacket, an adhesive tube, and an outer PU tube. Since the adhesive tubes melt during the manufacturing process, only three layers can be seen in the finished product; hence, the name "3-Ply." The manufacturing process of 3-Ply starts by pulling a polyurethane (PU) tube though the inside an adhesive tube; then, pulling these two tubes through the inside a woven reinforcement jacket. Steam is blown through the PU tube to melt the adhesive and bond the PU tube to the reinforcement jacket. The tube inside the jacket is then turned inside-out ("turning the inside tube out") and the process is repeated with a second PU tube and a second adhesive tube. During this procedure, moisture builds up on the reinforcement jacket and numerous pin holes are made in the outer PU tube to permit this moisture to escape.

ETW - Extruded through the weave

The manufacturing process for extruded-through-the-weave (ETW) hose uses two polyurethane tubes separated by a reinforcement jacket. The PU tubes are extruded through the weave of the reinforcement jacket, melding all components into a single piece of reinforced TPU lay flat hose.

3-Ply hose could use less TPU material, the manufacturing process can keep the hose tubes as thin as they like, this results from the necessary procedure of turning the inside tube out, which becomes very difficult if the tubes are too thick. While ETW hose normally use more TPU material, and has to test hose after made, to make sure whole woven jack coved tight.

Advantage of ETW vs 3-Ply

Some advantages of through-the-weave TPU lay flat hose are:

1. No adhesive is used; hence, there is no potential for the hose to delaminate.
2. At working pressure, through-the-weave TPU hose has an elongation rate of 1%, as compared to up to 10% for 3-Ply. An elongation rate of this magnitude results in "snaking" which causes the hose to move in an - unpredictable manner and may lead to damage to the hose and the environment, as well as a reduced flow rate.
3. The pin holes made in the outer layer of 3-Ply hose during the manufacturing process could allow moisture to come back through the pin holes while the hose is in use in the field, compromising the integrity of the adhesive. The slightest loss in adhesion could cause the hose to delaminate and, in the worst case, result in a major spill.
4. Peel tests of lay flat hose (a procedure that pulls the TPU old the ranNrcernent rack.) have quantified that the strength required to separate TPU from the reinforcement tacket is twice as great for extruded through-the-weave as that required for 3-Ply.
5. The interior of through-the-weave hose is much smoother than 3-Ply hose, thus a/MA.9 a higher flow rate for through-the-weave hose than for 3-Ply.
6. In the process of 'turning the inside tube out" manufacturers have to use a sorter polyurethane material than ETW hose As a consequence. ETW hose IS more resistant to abrasion and less puncture than 3-Ply hose
7. Fabricators and field people probably preffer 3-Ply because it isn't as stiff as ETW and is eamer to cut.
