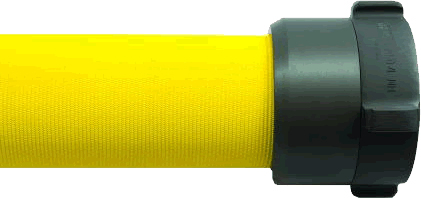

Nitrile Rubber Fire Hose

Nitrile rubber fire hose is the high-end nitrile rubber covered fire hose manufactured using a unique process which permanently bonds the nylon 6.6 reinforcement to the nitrile rubber cover/liner. The benefits is an easily coiled, non-kinking, high-flow, lightweight hose that also resists abrasion, chemicals and weathering by ozone. Extruded thru-the-weave construction means no adhesives—and therefore no delamination for a longer service life.



  • Ultra-Strong. Extruded thru-the-weave, nitrile rubber fire hose with reinforcement via circular woven, twill weave and nylon fibers delivers superior durability.
  • Tough. Highly resistant to both contact and radiant heat. An external elastomeric coating provides very low absorption of liquids.
  • Flexible. Remains flexible to temperatures as low as -20°F (-29°C) and is resistant to ozone, oxidation and most chemicals and petroleum products.
  • Versatile. Engineered for multi-use – can be used as an alternative to all types of conventional hose.
  • Worry-free. No maintenance, no drying required and easily cleaned.
  • Certified. Manufactured in accordance with NFPA Standard 1961, latest edition within our ISO-9001 certified quality assurance system.

HOSE SIZING AND SPECIFICATIONS



SIZE SERVICE TEST PROOF TEST BURST WEIGHT
(FOR 50' COUPLED)		 FLAT WIDTH BOWL SIZE
IN PSI (kPa) PSI (kPa) PSI (kPa) LBS (KG) IN IN
1" 300 (2070) 600 (4140) 900 (6200) 7 (3.2) 1.75" 1 3/16"
1 1/2" 300 (2070) 600 (4140) 900 (6200) 10 (4.5) 2.50" 1 13/16"
1 3/4" 300 (2070) 600 (4140) 900 (6200) 13 (5.9) 2.90" 2 1/16"
2" 300 (2070) 600 (4140) 900 (6200) 15 (6.8) 3.30" 2 3/16"
2 1/2" 300 (2070) 600 (4140) 900 (6200) 20 (9.1) 4.10" 2 13/16"



Specification

TYPE HOSE ID  BY HOSE LENGTH COLOR COUPLING SIZE THREAD TYPE COUPLING MATERIAL
LD 1"

1 1/2"

1 3/4"

2"

2 1/2"		 X

50 = 50'


75 = 75'



100 = 100'		 Y = Yellow

R = Red

B = Blue		 10 = 1"


15 = 1 1/2"

20 = 2"

25 = 2 1/2"		 N = NH


I = IPT

BW = British

Instantaneous		 Blank = Aluminum

 BR = Brass Rocker Lug

 BP = Brass Pin Lug

 G = Gunmetal

(BW Thread Only)
